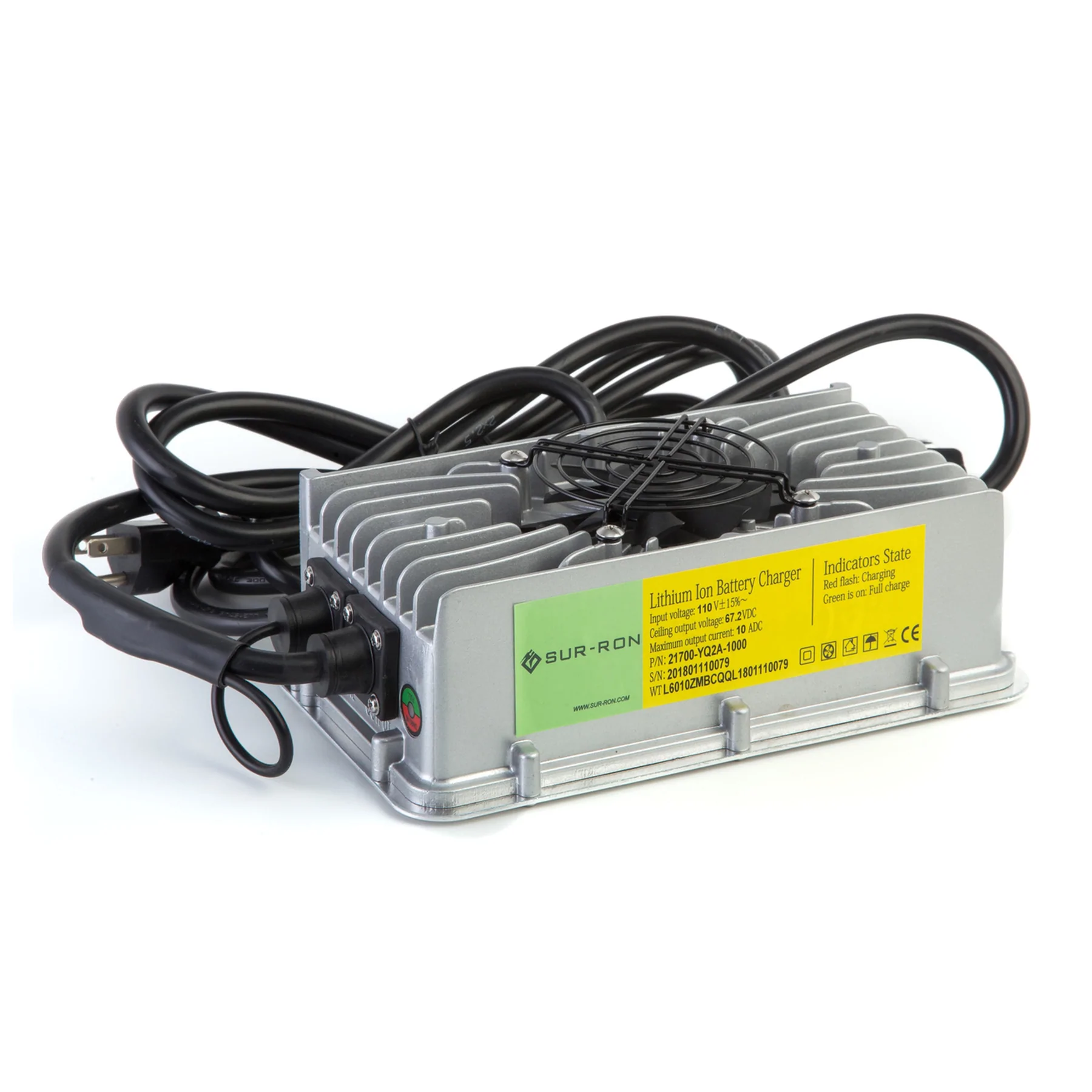

SURRON LIGHT BEE 60V 10A FAST CHARGER – 67.2V 10A 600W – 110-240V INPUT – 3-PIN XLR – LED RED GREEN – FAN COOLED – LBX-CHG-60V10A
| SURRON LIGHT BEE 60V 10A FAST CHARGER – COMPLETE SPEC SHEET | |
|---|---|
| 1. OVERVIEW & DESIGN AS SEEN | |
| Product Name |
Surron Light Bee 60V 10A Fast Charger – 67.2V 10A 600W
– Surron Light Bee X 60V 34Ah 32Ah 40Ah Panasonic Battery 2040Wh Fast Charge
– Surron Light Bee X 19″ Wheel 2024 2025 2026 – Surron Light Bee S – Segway X260
– Genuine Surron Charger Replacement – LBX-BAT-60V34AP Compatible
– Input 110-240V Universal – Output 67.2V 10A – 3-Pin XLR Connector
Model: LBX-CHG-60V10A
|
| 2. ELECTRICAL & TECHNICAL | |
| Electrical Full Spec |
SURRON 60V 10A FAST CHARGER – 67.2V 10A 600W
Label & Electrical – As Seen Image 3:
– Brand: SURRON / For SURRON
– Model: LBX-CHG-60V10A – 60V 10A Fast Charger
– Electrical Specs:
– Input Voltage: 110-240V AC 50/60Hz – universal auto switch
– Input Current: 8A max @ 110V / 4A max @ 240V
– Output Voltage: 67.2V DC (max charging voltage for 60V 16S Li-ion)
– Output Current: 10A Std – constant current
– Output Power: 600W – 672W peak
– Connector: 3-Pin XLR – 3 gold pins – round black metal
– Battery Compatibility: Surron Light Bee X 60V 34Ah LBX-BAT-60V34AP / 32Ah / 40Ah / Panasonic 18650 NCR18650 / 2040Wh
– Charging Time: 3-4 hours for 60V 34Ah 2040Wh – vs 6-7H with 5A charger
– Charging Mode: CC-CV – constant current then constant voltage – auto cut-off at 67.2V
– Protection:
– Overcharge protection – auto cut-off
– Overcurrent protection
– Short circuit protection
– Over-temperature protection – fan + thermal sensor
– Reverse polarity protection
– Indicators / Cooling:
– LED: Red = Charging – Green = Full / Standby – flashing red = fault
– Fan: 60mm temperature-controlled fan – rear – active cooled
– Compliance:
– Icons: CE / RoHS / FCC / Recycle
– QR Code – Serial No: CHG60-10A-2024-XXXX
|
| Physical |
Physical – Surron 60V 10A Fast Charger:
– Case: Black aluminum extruded case – 200 x 120 x 70mm – brushed top
– Weight: ∼1.8kg – without cables – ∼2.2kg with cables
– Cables: AC input 1.2m + DC output 1.0m – thick 14AWG copper
– Connector: 3-Pin XLR male – black metal round – 3 gold pins
– Front: LED indicator round – SURRON logo white
– Rear: Cooling fan 60mm with grill + AC socket
– Bottom: 4x rubber feet + spec label white with black text – Model LBX-CHG-60V10A – Input 110-240V – Output 67.2V 10A – CE RoHS – QR
– Color: Black case – black cables
– IP: IP20 – indoor use only
– For: Light Bee X 60V 34Ah Panasonic
|
| BMS / Charger Logic / Safety |
Technical Details – Surron 60V 10A Fast Charger:
– Charge Logic: Smart charger – CC/CV – communicates with Surron BMS – auto stop at 67.2V
– BMS Compatibility: Works with Surron Smart BMS inside battery – overcharge / overdischarge / overcurrent / temp protection on both sides
– Fan Logic: Fan turns on at >45°C – auto off when cool – keeps charger <65°C
– LED Logic: Plug AC – green standby – plug battery – red charging – green full – red flashing = fault / overtemp / short
– Safety: Do not disassemble – do not short circuit – do not expose to fire / heat / water – use only for Surron 60V Li-ion – risk fire/explosion if misused
– Use Only: Surron Light Bee X 60V batteries – 32Ah / 34Ah / 40Ah – Model LBX-BAT-60V34AP
– Weight: ∼1.8kg – portable
– For: Light Bee X 60V 34AH Panasonic – fast charge 3-4H
|
| 3. COMPATIBILITY, INCLUDED & BENEFITS | |
| Motor / Controller / Speed / Range Effect |
Motor / Performance – With 60V 10A Fast Charger:
– Compatible Motor: Surron Light Bee X 6000W Mid Motor Racing – 10kW peak
– Controller: Surron 60V X Controller – stock / ASI BAC4000 / BAC8000
– Battery: 60V 34Ah 2040Wh – 32Ah 1920Wh – 40Ah 2400Wh – all 16S – max charge 67.2V
– Speed: No effect on speed – 46 mph / 75 km/h
– Range: Full range 60 miles / 100 km @ 20 mph after full charge with 10A charger – same as 5A – just faster
– Charge Time Comparison: 5A Standard = 6-7H for 34Ah – 10A Fast = 3-4H for 34Ah – saves 50% time
– For: Off-Road / Racing / Daily – quick turnaround
|
| Compatibility / Included / Warning |
Compatibility / Included / Label – Surron 60V 10A Charger:
Compatibility:
– Compatible: Surron Light Bee X 60V – Light Bee X 19″ – Light Bee X 2024 2025 2026 – 34Ah / 32Ah / 40Ah
– Also Fits: Light Bee S 60V / Segway X260 X160 60V (with adapter) – Check connector 3-Pin XLR
– Not Compatible: Light Bee S 48V – Ultra Bee 74V – Storm Bee 104V – Only 60V
Included:
– 1x Surron Light Bee 60V 10A Fast Charger – Aluminum case black
– 1x AC Input Cable – EU / US / UK plug (choose at checkout) – 1.2m
– 1x DC Output Cable built-in – 3-Pin XLR – 1.0m
– Manual – Warranty card
Warning:
– CAUTION: Do not disassemble. Do not short circuit. Do not expose to fire / heat / water. Use only with Surron Light Bee X 60V Li-ion batteries. Indoor use only. Risk of fire/explosion if misused.
– LED: Red charging – Green full – Red flashing fault
– Fan: Keep vents clear – do not cover
Physical:
– Black aluminum case – 200 x 120 x 70mm – 1.8kg – fan cooled – LED
– Connector 3-Pin XLR gold pins – AC cable + DC cable
Label Full:
– Model: LBX-CHG-60V10A
– Input: 110-240V AC 50/60Hz / Output: 67.2V 10A 600W
– Compatibility: 60V 32Ah 34Ah 40Ah – LBX-BAT-60V34AP – NCR18650
– Charge Time: 3-4 Hours for 34Ah 2040Wh
– Protection: Overcharge / Overcurrent / Short / Temp / Reverse
– Compliance: CE / RoHS / FCC / Recycle / QR
– Branding: SURRON – 60V 10A FAST CHARGER – 67.2V 10A
– For: Sur-Ron / For Genuine Surron / For Light Bee X / 60V 10A Fast Charger Ultimate
|
Buy Now – Surron Light Bee 60V 10A Fast Charger – 67.2V 10A 600W – 110-240V – 3-Pin XLR – 3-4H for 34Ah 2040Wh – LED Fan Cooled – LBX-CHG-60V10A – $320 Free Shipping – Surron Fast Charger Ultimate
