DRIFT HERO 36V/9Ah 800W ELECTRIC DIRT BIKE – 36V 9Ah 324Wh – 800W CHAIN DRIVE – 12″ YOUTH PIT BIKE
| DRIFT HERO 36V/9Ah 800W ELECTRIC DIRT BIKE – COMPLETE SPECIFICATION SHEET | |
|---|---|
| 1. OVERVIEW & DESIGN | |
| Product Name | Drift Hero 36V/9Ah 800W Electric Dirt Bike – Youth Electric Pit Bike – Off-Road Motocross Style |

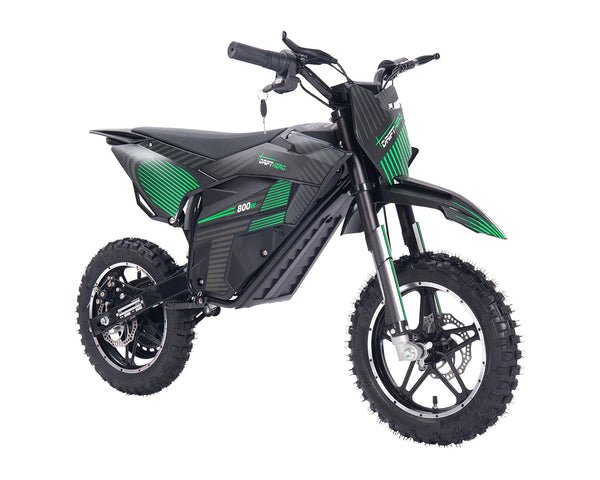

| Design As Seen | Images 1 & 2: Black Frame with Neon Green Stripes – DRIFTHERO Green Logo on Tank Side and Front Number Plate As Seen – 800W Green/White on Side Panel Black Battery Cover As Seen – 36V 9Ah Green on Lower Panel As Seen Image 2 – Front Fender Black with Green Stripes – Rear Fender Black Long Moto Tail As Seen – Moto Seat Long Black As Seen – Key Ignition with 2 Keys Hanging on Handlebar As Seen Image 1 & 2 – Kickstand Black Steel As Seen Image 1 – Chain Guard Black |
| Purpose | Youth / Kids / Teens / Beginners Pit Bike – Off-Road Dirt / Grass / Trail – Learning Electric Motocross – Silent Operation – No Gas |
| 2. MOTOR & PERFORMANCE | |
| Motor | 800W Chain Drive Motor – 36V – Mounted Center Low – Chain Drive to Rear Sprocket As Seen Image 1 Chain Side Gold Chain – Sprocket Rear – More Torque for Off-Road vs Hub |
| Speed | 25 MPH Top Speed – 3 Speed Modes? Twist Throttle – Low/Med/High via Key Switch |
| Range | 20-25 km / 12-15 Mile per Charge with 36V 9Ah 324Wh – Depending on Rider Weight / Terrain – Realistic 1-2 Hours Riding |
| Controller | 36V 30A Controller – Twist Throttle – Key Ignition Start As Seen – Battery Indicator |
| 3. BATTERY & CHARGING – SEE IMAGE 3 DETAIL LABEL | |
| Battery Label Seen Image 3 | Drift Hero 36V 9Ah 800W LITHIUM-ION BATTERY PACK – Model: DH-36V9AH-800 – Capacity: 9Ah (324Wh) • Nominal Voltage: 36V – Max Charging Voltage: 42V • Max Discharge Current: 30A – Cell Type: Lithium-ion • BMS Protected: Overcharge/Overdischarge/Overcurrent/Short Circuit Protection – Cycle Life: >500 cycles • Weight: 2.8 kg – IP65 Waterproof • Working Temp: -20°C ~ 60°C – S/N: DH369AH800-24081723 – QR Code – CE RoHS UN38.3 Recycling Icons |
| Battery Features Seen | Black Rugged Hard Case – Textured Ribs Sides As Seen Image 3 – Top Flat – Bottom Connector with Black Cable and XT? Actually Rectangular Connector As Seen Bottom Right – White Label with Blue Drift Hero Logo with Lightning – WARNING: Do not disassemble, crush, puncture, or incinerate. Use only with Drift Hero 36V system. Use approved 42V charger only. As Seen Text |
| Charging Time | 4-5 Hours with 42V 2A Charger Included – Charger: 42V Output – Charge Port on Battery or Bike – BMS Balancing – Cycle Life >500 cycles to 80% As Seen |
| 4. FRAME, SUSPENSION & CHASSIS | |
| Frame | Steel Frame Black Tubular As Seen – Battery Compartment Central – Weight 36kg / 79 lbs – Max Load 150 lbs / 68kg (Youth) – Riders Age 8-14 / Height 4’0″ to 5’6″ – Wheelbase Small Pit Bike |
| Suspension | Front: Inverted Hydraulic Fork Black with Silver Stanchions As Seen Image 1 & 2 – Travel ~80mm – Rear: Mono Shock White Spring As Seen Image 1 Coil White + Black Body – Under Seat Between Swingarm and Frame – Swingarm Steel Black As Seen – Total Travel 80mm Front + 60mm Rear |
| 5. WHEELS, TIRES, BRAKES & DRIVETRAIN | |
| Wheels & Tires | 12″ Wheels Front/Rear – Alloy Star Rims Black 5 Spoke As Seen Image 1 & 2 – Tires 12″ x 2.5″ Off-Road Knobby As Seen Thick Spiky Tread – Brand S.INNZAT As Seen Image 1 Sidewall – Pressure 25-35 PSI – For Dirt/Grass – Front Hub 12mm Axle – Rear Chain Drive Sprocket |
| Brakes | Disc Brakes Front/Rear – Rotors Silver Drilled As Seen Image 1 & 2 Front and Rear – Calipers Mechanical Disc – Levers Hand Brake Front + Rear – As Seen Image 2 Brake Levers Black |
| Drivetrain | Chain Drive – Chain Gold Color As Seen Image 1 Under Swingarm – Front Sprocket 11T Motor – Rear Sprocket 65T – Ratio 1:5.9 – For High Torque Off-Road – Chain Tensioner Adjustable |
| 6. COCKPIT, SAFETY & ACCESSORIES | |
| Cockpit | Handlebar Alloy 600mm BMX Style Black – Grips Rubber Black – Twist Throttle Right Side – Brake Levers Both Sides – Key Switch with Keys As Seen Image 1 & 2 Hanging – Kill Switch? Actually Key Only – Saddle Moto Long Black As Seen – Seat Height 28″ Low for Youth – Footpegs Folding Metal As Seen – Kickstand Black Steel As Seen Image 1 |
| Safety | Key Ignition Prevents Unauthorized Use – Chain Guard – Disc Guards – Speed Limiter Screw on Throttle – Helmet Required – Age 8+ Recommended – Adult Supervision – Weight Limit 150 lbs – For Off-Road Use Only Not Public Roads |
| What’s Included | Bike 85% Assembled – 36V 9Ah 324Wh Battery Installed – 42V 2A Charger – 2 Keys – Tool Kit – Manual – Front/Rear Reflectors Optional |
