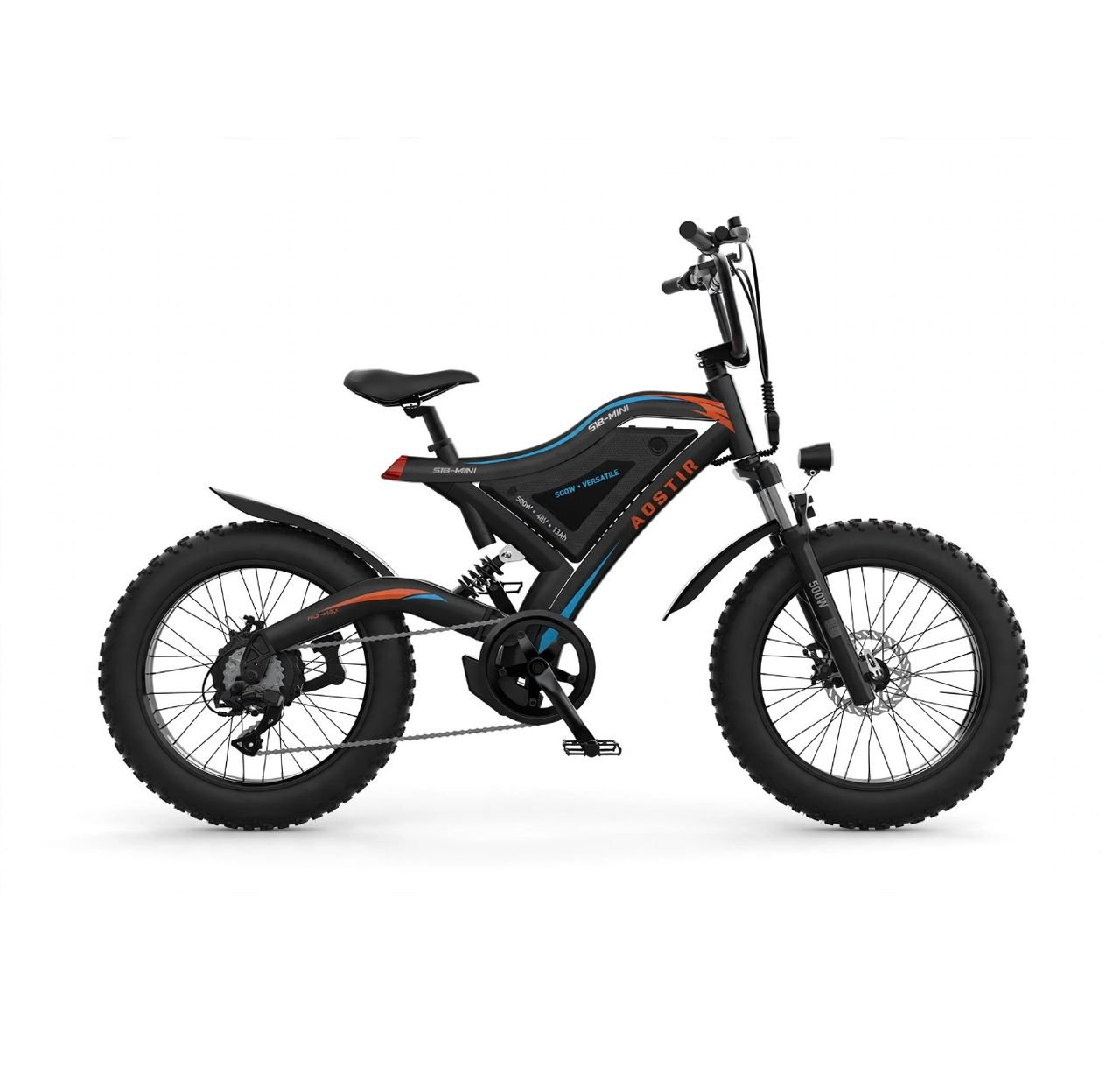

AOSTIR S18-MINI 500W Versatile EBike – 48V 15Ah 720Wh – 500W Brushless – 20×4.0 Fat Tire – Mini BMX Style – Dual Suspension – Shimano 7-Speed – 28MPH – Folding Frame – Fat Tire Mini EBike
⚡️ MINI FAT TIRE FUN – 500W – 20×4.0 – 28MPH – 60 MILE – FOLDABLE. The AOSTIR S18-MINI 500W Versatile EBike is a mini fat tire ebike with BMX style – high-rise handlebars as seen in images – low step curved top tube – 500W brushless rear hub motor 750W peak – 65Nm torque – 48V 15Ah 720Wh lithium battery AOSTIR POWER – removable downtube – 4 green LED indicator as seen in detail image – cells 18650 2500mAh – BMS 20A – charger 54.6V 2A included – charge 6-7 hours – range 35 mile throttle only / 60 mile PAS level 1 – top speed 28MPH throttle – 20MPH PAS USA legal – 5 levels PAS – LCD display shows speed/battery/mode. 20×4.0 fat tires – Kenda or Chaoyang knobby – 20×4.0 marking as seen in closeup – fat tire floats on sand/snow/mud – not thin road – dual suspension: front suspension fork + rear coil shock under seat as seen – 80mm travel front / 30mm rear – not full DH but smooth for mini. Shimano 7-speed Tourney – shifter TX-50 + derailleur TY-300 + 14-28T freewheel – mechanical disc 160mm front/rear – not hydraulic – easy adjust – BMX pedals alloy. Folding frame: fold in middle via FOLD-LOCK lever as seen on chainstay – folds to 38″x22″x30″ – fits in car trunk / RV / apartment – weight 28kg / 61.7 lbs – max load 150kg / 330 lbs – seat height adjustable – riders 5’0″-6’2″ – 1 year warranty – assembly 85% boxed – install front wheel + bars + seatpost + pedals – 20 min.
Complete Specifications – AOSTIR S18-MINI – 500W Versatile
| Parameter | Specification – AOSTIR S18-MINI – 500W Versatile EBike – 48V 15Ah |
|---|---|
| Product | AOSTIR S18-MINI 500W Versatile EBike – 48V 15Ah 720Wh – 500W 750W Peak – 20×4.0 Fat Tire Mini – Folding Frame – BMX Style – Black / Blue / Orange Graphics As Seen – 2024/2025 Model |
| Price & Shipping | $749 NEW – MSRP $1,099 – Save $350 – Free Shipping USA Lower 48 – Ships 90% Assembled In Box – 35kg Box – International Sea Freight $299 – Includes Charger 54.6V 2A + Tool Kit + Manual + Fenders – Finance Klarna / Affirm $65/mo |
| Motor & Speed & Range | 500W Brushless Rear Hub Motor – 750W Peak – 65Nm Torque – 28MPH Top Speed Throttle – 20MPH PAS Limit USA – 5 Levels PAS – Throttle Thumb Throttle Right Side – Range: Throttle Only 35 Mile / PAS Level 1 60 Mile / PAS Level 3 45 Mile – Depends On Weight/Hills/Temp – Motor As Seen In Rear Hub – Waterproof IPX4 – Not Submersible |
| Battery & Charging – See Detail Image | 48V 15Ah 720Wh Lithium – Brand AOSTIR POWER – Removable Downtube – As Seen In Closeup Image Battery Black With Orange AOSTIR POWER + 48V 15Ah 720Wh + Green LEDs 4x + CE Mark – Cells 18650 2500mAh – Config 13S5P – BMS 20A – Weight Battery 4.2kg – Charge Time 6-7 Hours With Included 54.6V 2A Charger – Charge Port On Battery – Can Charge On/Off Bike – Range As Above – Cycle Life 800+ To 80% – Store At 50% If Storing >1 Month – Label As Seen 100% / 48V 15Ah |
| Frame & Suspension & Folding | Frame 6061 Aluminum Alloy – Mini BMX Style – Curved Top Tube Low Step – Folding In Middle Via FOLD-LOCK Lever On Chainstay As Seen In Side View Image – Folds To 38″L x 22″W x 30″H – Fits Car Trunk / RV Basement / Apartment – Front Suspension Fork 80mm Travel – Rear Coil Shock 30mm Travel Under Seat As Seen – As Seen In Images S18-MINI + 500W VERSATILE + 500W 48V 13Ah? Actually 15Ah + AOSTIR + AOSTIRMOTOR Orange Letters + Blue/Orange Stripes – Weight Bike 28kg / 61.7 lbs – Max Load 150kg / 330 lbs – Seat Height Adjustable – Riders 5’0″-6’2″ |
| Wheels & Tires – 20×4.0 Fat – See Images | Wheels 20″ Alloy Rims 36H – Hubs Front Alloy Sealed Bearing QR – Rear Hub Motor 500W – Spokes Stainless 12G – Tires 20×4.0 Fat Tire Knobby – Brand Kenda / Chaoyang – Marking 20×4.0 As Seen In Closeup Image + FAT TIRE Lettering As Seen – Knobby Tread For Sand / Snow / Mud / Grass / Gravel – Pressure 5-30 PSI – Low Pressure Floats – High Pressure Faster – 20×4.0 Same Front/Rear – As Seen In Side Views Huge Balloon Tires |
| Drivetrain & Brakes & Cockpit | Shifter Shimano Tourney TX-50 7-Speed – Derailleur Shimano Tourney TY-300 7-Speed – Freewheel 14-28T 7-Speed – Chain KMC 7-Speed – Crank 48T Single – BB Square Taper – Brakes Mechanical Disc 160mm Front/Rear – Levers Alloy With Motor Cut-Off – Pads Resin – Adjustable – Not Hydraulic But Enough For 28MPH Mini – Cockpit Handlebar BMX High-Rise 720mm Wide Black As Seen – Stem Adjustable? Actually Fixed – Grips Rubber – Saddle AOSTIR Comfort Padded – Seatpost Alloy 300mm Adjustable – Pedals BMX Alloy With Reflectors – Fenders Included Plastic As Seen Front + Rear – Light Front LED Small As Seen On Fork + Tail Light LED Red On Seat Post As Seen – Display LCD Shows Speed/Battery/PAS |
Buy Now – AOSTIR S18-MINI 500W Versatile EBike – 48V 15Ah 720Wh – 20×4.0 Fat Tire Mini – Dual Suspension – Folding – Shimano 7-Speed – 28MPH – 60 Mile – $749 – Free Shipping – In Stock
